Combination Nipple

KCN

KCG

KCW

  KC reducer

Hose Mender

  TBE-PORT

  TOE

TBE

GOE

KCN: male NPT thread KC Nipple
KCB: male BSP thread KC Nipple
KCG: Victaulic Groove KC Nipple
KCW: KC Nipple with beveled end for welding
HM: Hose Mender
TBE-PORT: male NPT both ends with a TOE welded
TOE: male NPT*beveled for welding
TBE: male NPT both ends
GOE: Groove beveled for welding



Steel Only: Cover with Oil
Steel Plated: Zinc Plated
Steel Painted: Lacquer Painted

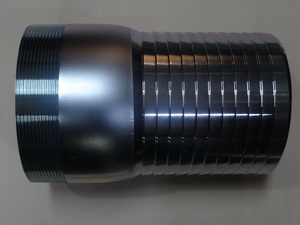

Male NPT Thread KC Nipple

KC Steel oiled Steel Plated Steel Plainted Steel Plainted Aluminum Brass SS304 SS316 Nylon Polypropylene
1/2" KCN50SO KCN50SP KCN50SL KCN50SL KCN50AL KCN50BS KCN50S4 KCN50S6 KCN50NY KCN50PP
3/4" KCN75SO KCN75SP KCN75SL KCN75SL KCN75AL KCN75BS KCN75S4 KCN75S6 KCN75NY KCN75PP
1" KCN100SO KCN100SP KCN100SL KCN100SL KCN100AL KCN100BS KCN100S4 KCN100S6 KCN100NY KCN100PP
11/4" KCN125SO KCN125SP KCN125SL KCN125SL KCN125AL KCN125BS KCN125S4 KCN125S6 KCN125NY KCN125PP
1 1/2" KCN150SO KCN150SP KCN150SL KCN150SL KCN150AL KCN150BS KCN150S4 KCN150S6 KCN150NY KCN150PP
2" KCN200SO KCN200SP KCN200SL KCN200SL KCN200AL KCN200BS KCN200S4 KCN200S6 KCN200NY KCN200PP
2 1/2" KCN250SO KCN250SP KCN250SL KCN250SL KCN250AL KCN250BS KCN250S4 KCN250S6 KCN250NY KCN250PP
3" KCN300SO KCN300SP KCN300SL KCN300SL KCN300AL KCN300BS KCN300S4 KCN300S6 KCN300NY KCN300PP
4" KCN400SO KCN400SP KCN400SL KCN400SL KCN400AL KCN400BS KCN400S4 KCN400S6 KCN400NY KCN400PP
5" KCN500SO KCN500SP KCN500SL KCN500SL KCN500AL   KCN500S4 KCN500S6
6" KCN600SO KCN600SP KCN600SL KCN600SL KCN600AL   KCN600S4 KCN600S6
8" KCN800SO KCN800SP KCN800SL KCN800SL KCN800AL   KCN800S4 KCN800S6
10" KCN1000SO KCN1000SP KCN1000SL KCN1000SL KCN1000AL   KCN1000S4 KCN1000S6
12" KCN1200SO KCN1200SP KCN1200SL KCN1200SL KCN1200AL   KCN1200S4 KCN1200S6



Male BSP Thread KC Nipple

KC Steel oiled Steel Plated Steel Plainted Steel Plainted Aluminum Brass SS304 SS316 Nylon Polypropylene
1/2" KCB50SO KCB50SP KCB50SL KCB50SL KCB50AL KCB50BS KCB50S4 KCB50S6 KCB50NY KCB50PP
3/4" KCB75SO KCB75SP KCB75SL KCB75SL KCB75AL KCB75BS KCB75S4 KCB75S6 KCB75NY KCB75PP
1" KCB100SO KCB100SP KCB100SL KCB100SL KCB100AL KCB100BS KCB100S4 KCB100S6 KCB100NY KCB100PP
11/4" KCB125SO KCB125SP KCB125SL KCB125SL KCB125AL KCB125BS KCB125S4 KCB125S6 KCB125NY KCB125PP
1 1/2" KCB150SO KCB150SP KCB150SL KCB150SL KCB150AL KCB150BS KCB150S4 KCB150S6 KCB150NY KCB150PP
2" KCB200SO KCB200SP KCB200SL KCB200SL KCB200AL KCB200BS KCB200S4 KCB200S6 KCB200NY KCB200PP
2 1/2" KCB250SO KCB250SP KCB250SL KCB250SL KCB250AL KCB250BS KCB250S4 KCB250S6 KCB250NY KCB250PP
3" KCB300SO KCB300SP KCB300SL KCB300SL KCB300AL KCB300BS KCB300S4 KCB300S6 KCB300NY KCB300PP
4" KCB400SO KCB400SP KCB400SL KCB400SL KCB400AL KCB400BS KCB400S4 KCB400S6 KCB400NY KCB400PP
5" KCB500SO KCB500SP KCB500SL KCB500SL KCB500AL   KCB500S4 KCB500S6
6" KCB600SO KCB600SP KCB600SL KCB600SL KCB600AL   KCB600S4 KCB600S6
8" KCB800SO KCB800SP KCB800SL KCB800SL KCB800AL   KCB800S4 KCB800S6
10" KCB1000SO KCB1000SP KCB1000SL KCB1000SL KCB1000AL   KCB1000S4 KCB1000S6
12" KCB1200SO KCB1200SP KCB1200SL KCB1200SL KCB1200AL   KCB1200S4 KCB1200S6

Grooved KC

KCG Steel Only Steel Plated Steel Plainted Aluminum Brass SS304 SS316
1/2" KCG50SO KCG50SP KCG50SL KCG50AL KCG50BS KCG50S4 KCG50S6
3/4" KCG75SO KCG75SP KCG75SL KCG75SAL KCG75BS KCG75S4 KCG75S6
1" KCG100SO KCG100SP KCG100SL KCG100SAL KCG100BS KCG100S4 KCG100S6
11/4" KCG125SO KCG125SP KCG125SL KCG125SAL KCG125BS KCG125S4 KCG125S6
11/2" KCG150SO KCG150SP KCG150SL KCG150AL KCG150BS KCG150S4 KCG150S6
2" KCG200SO KCG200SP KCG200SL KCG200AL KCG200BS KCG200S4 KCG200S6
21/2" KCG250SO KCG250SP KCG250SL KCG250AL KCG250BS KCG250S4 KCG250S6
3" KCG300SO KCG300SP KCG300SL KCG300SAL KCG300BS KCG300S4 KCG300S6
4" KCG400SO KCG400SP KCG400SL KCG400AL KCG400BS KCG400S4 KCG400S6
5" KCG500SO KCG500SP KCG500SL KCG500SAL   KCG500S4 KCG500S6
6" KCG600SO KCG600SP KCG600SL KCG600SAL   KCG600S4 KCG600S6
8" KCG800SO KCG800SP KCG800SL KCG800AL   KCG800SS4 KCG800S6
10" KCG1000SO KCG1000SP KCG1000SL KCG1000AL   KCG1000S4 KCG1000S6
12" KCG1200SO KCG1200SP KCG1200SL KCG1200AL   KCG1200S4 KCG1200S6

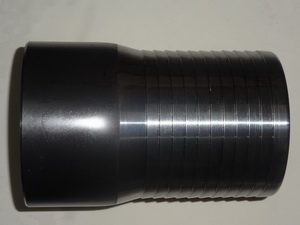

Beveled KC for welding

KCW Steel Only Steel Plated Aluminum Brass SS304 SS316
1/2" KCW50SO KCW50SP KCW50AL KCW50BS KCB50S4 KCB50S6
3/4" KCW75SO KCW75SP KCW75SAL KCW75BS KCB75S4 KCB75S6
1" KCW100SO KCW100SP KCW100SAL KCW100BS KCB100S4 KCB100S6
11/4" KCW125SO KCW125SP KCW125SAL KCW125BS KCB125S4 KCB125S6
11/2" KCW150SO KCW150SP KCW150AL KCW150BS KCB150S4 KCB150S6
2" KCW200SO KCW200SP KCW200AL KCW200BS KCB200S4 KCB200S6
21/2" KCW250SO KCW250SP KCW250AL KCW250BS KCB250S4 KCB250S6
3" KCW300SO KCW300SP KCW300SAL KCW300BS KCB300S4 KCB300S6
4" KCW400SO KCW400SP KCW400AL KCW400BS KCB400S4 KCB400S6
5" KCW500SO KCW500SP KCW500SAL KCB500S4 KCB500S6
6" KCW600SO KCW600SP KCW600SAL KCB600S4 KCB600S6
8" KCW800SO KCW800SP KCW800AL KCB800S4 KCB800S6
10" KCW1000SO KCW1000SP KCW1000AL KCB1000S4 KCB1000S6
12" KCB1200SO KCW1200SP KCW1200AL KCB1200S4 KCB1200S6



Hose Mender

HM Steel Plated Brass SS304 SS316
1/2" HM50SP HM50BS HM50S4 HM50S6
3/4" HM75SP HM75BS HM75S4 HM75S6
1" HM100SP HM100BS HM100S4 HM100S6
11/4" HM125SP HM125BS HM125S4 HM125S6
11/2" HM150SP HM150BS HM150S4 HM150S6
2" HM200SP HM200BS HM200S4 HM200S6
21/2" HM250SP HM250BS HM250S4 HM250S6
3" HM300SP HM300BS HM300S4 HM300S6
4" HM400SP HM400BS HM400S4 HM400S6
5" HM500SP HM500BS HM500S4 HM500S6
6" HM600SP HM600BS HM600S4 HM600S6
8" HM800SP HM800BS HM800S4 HM800S6
10" HM1000SP HM1000BS HM1000S4 HM1000S6
12" HM1200SP HM1200BS HM1200S4 HM1200S6

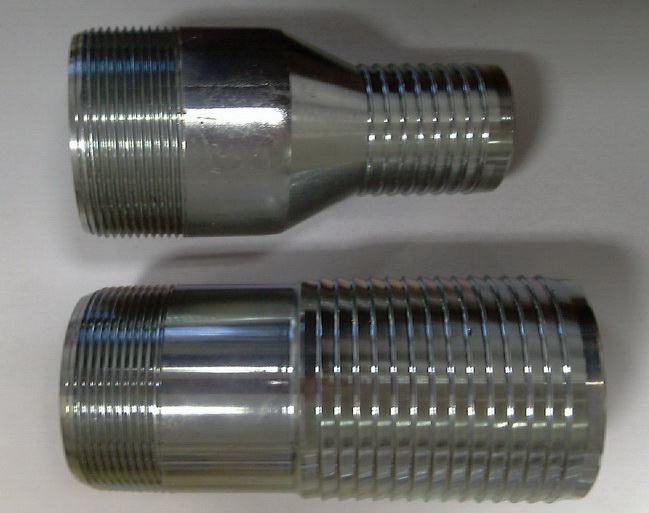

NPT thread KC Reducer

thread shank Steel Plated SS304 SS316
1" 1.25" KCN1012SP KCN1012S4 KCN1012S6
1" 1.5" KCN1015SP KCN1015S4 KCN1015S6
1.25" 1" KCN1210SP KCN1210S4 KCN1210S6
1.25" 1.5" KCN1215SP KCN1215S4 KCN1215S6
1.5" 1.25" KCN1512SP KCN1512S4 KCN1512S6
1.5" 2" KCN1520SP KCN1520S4 KCN1520S6
2" 1.5" KCN2015SP KCN2015S4 KCN2015S6
2" 2.5" KCN2025SP KCN2025S4 KCN2025S6
2.5" 2" KCN2520SP KCN2520S4 KCN2520S6
2.5" 3" KCN2530SP KCN2530S4 KCN2530S6
3" 2.5" KCN3025SP KCN3025S4 KCN3025S6
3" 4" KCN3040SP KCN3040S4 KCN3040S6
4" 3" KCN4030SP KCN4030S4 KCN4030S6



TOE: male NPT*beveled for welding

size total length Steel Plated SS304 SS316
1/2" 1" TOEN50L10SP TOEN50L10S4 TOEN50L10S6
3/4" 1" TOEN175L10SP TOEN175L10S4 TOEN175L10S6
1" 1" TOEN100L10SP TOEN100L10S4 TOEN100L10S6
1.25" 1" TOEN125L10SP TOEN125L10S4 TOEN125L10S6
1.25" 1.5" TOEN125L15SP TOEN125L15S4 TOEN125L15S6
1.5" 1" TOEN150L10SP TOEN150L10S4 TOEN150L10S6
1.5" 1.5" TOEN150L15SP TOEN150L15S4 TOEN150L15S6
2" 1.5" TOEN200L15SP TOEN200L15S4 TOEN200L15S6
2" 2" TOEN200L20SP TOEN200L20S4 TOEN200L20S6
2.5" 1.5" TOEN250L15SP TOEN250L15S4 TOEN250L15S6
2.5" 2" TOEN250L20SP TOEN250L20S4 TOEN250L20S6
3" 2" TOEN300L20SP TOEN300L20S4 TOEN300L20S6
3" 3" TOEN300L30SP TOEN300L30S4 TOEN300L30S6
4" 2" TOEN400L20SP TOEN400L20S4 TOEN400L20S6
4" 3" TOEN400L30SP TOEN400L30S4 TOEN400L30S6
6" 3" TOEN600L30SP TOEN600L30S4 TOEN600L30S6
6" 4" TOEN600L40SP TOEN600L40S4 TOEN600L40S6



TBE: male NPT both ends

size total length Steel Plated SS304 SS316
1/2" 2" TBEN50L20SP TBEN50L20S4 TBEN50L20S6
3/4" 2" TBEN175L20SP TBEN175L20S4 TBEN175L20S6
1" 2" TBEN100L20SP TBEN100L20S4 TBEN100L20S6
1.25" 2" TBEN125L20SP TBEN125L20S4 TBEN125L20S6
1.5" 2" TBEN150L20SP TBEN150L20S4 TBEN150L20S6
1.5" 3" TBEN150L30SP TBEN150L30S4 TBEN150L30S6
2" 2" TBEN200L20SP TBEN200L20S4 TBEN200L20S6
2" 3" TBEN200L30SP TBEN200L30S4 TBEN200L30S6
2.5" 2" TBEN250L20SP TBEN250L20S4 TBEN250L20S6
2.5" 3" TBEN250L30SP TBEN250L30S4 TBEN250L30S6
3" 3" TBEN300L30SP TBEN300L30S4 TBEN300L30S6
3" 4" TBEN300L40SP TBEN300L40S4 TBEN300L40S6
4" 4" TBEN400L40SP TBEN400L40S4 TBEN400L40S6
4" 6" TBEN400L60SP TBEN400L60S4 TBEN400L60S6
6" 6" TBEN600L60SP TBEN600L60S4 TBEN600L60S6
6" 8" TOEN600L80SP TOEN600L40S4 TOEN600L40S6





GOE: male NPT thread*counter bore

size total length Steel Plated SS304 SS316 ALUMINUM
1/2" 1" GOE50L10SP GOE50L10S4 GOE50L10S6 GOE50L10AL
3/4" 1" GOE175L10SP GOE175L10S4 GOE175L10S6 GOE175L10AL
1" 1" GOE100L10SP GOE100L10S4 GOE100L10S6 GOE100L10AL
1.25" 1" GOE125L10SP GOE125L10S4 GOE125L10S6 GOE125L10AL
1.25" 1.5" GOE125L15SP GOE125L15S4 GOE125L15S6 GOE125L15AL
1.5" 1" GOE150L10SP GOE150L10S4 GOE150L10S6 GOE150L10AL
1.5" 1.5" GOE150L15SP GOE150L15S4 GOE150L15S6 GOE150L15AL
2" 1.5" GOE200L15SP GOE200L15S4 GOE200L15S6 GOE200L15AL
2" 2" GOE200L20SP GOE200L20S4 GOE200L20S6 GOE200L20AL
2.5" 1.5" GOE250L15SP GOE250L15S4 GOE250L15S6 GOE250L15AL
2.5" 2" GOE250L20SP GOE250L20S4 GOE250L20S6 GOE250L20AL
3" 2" GOE300L20SP GOE300L20S4 GOE300L20S6 GOE300L20AL
3" 3" GOE300L30SP GOE300L30S4 GOE300L30S6 GOE300L30AL
4" 2" GOE400L20SP GOE400L20S4 GOE400L20S6 GOE400L20AL
4" 3" GOE400L30SP GOE400L30S4 GOE400L30S6 GOE400L30AL
6" 3" GOE600L30SP GOE600L30S4 GOE600L30S6 GOE600L30AL
6" 4" GOE600L40SP GOE600L40S4 GOE600L40S6 GOE600L40AL
